Modern pergolas are outdoor structures typically used for shading and decoration. They feature clean lines
and minimalist
designs that provide shade and a decorative touch to a garden or patio. Modern pergolas often feature
options such as
built-in lighting, fans, and retractable canopies to provide more comfort and versatility.
Some newer models also utilize materials such as fiberglass and aluminum for durability and low maintenance.
They can be freestanding or attached to a building, and can be customized to suit various sizes and shapes.
With their sleek look and functional features, modern pergolas are popular choices for homeowners and
businesses seeking to
enhance their outdoor spaces. Overall, modern pergolas provide a functional and aesthetic addition to
outdoor living spaces.
Main benefits of the Baldwin Fiberglass Pergolas:
Constructed with fiberglass, stainless-steel, copper, and aluminum
Will last for decades. Annual cleaning recommended.
Fully customizable to any size rectangle or square
Designed for one day installation with typical contractor tools
Intersections notched for lateral rigidity, beauty and ease of assembly
No exposed fasteners - Very clean fit and finish
Hollow members can conceal wires for lights and speakers, even water lines

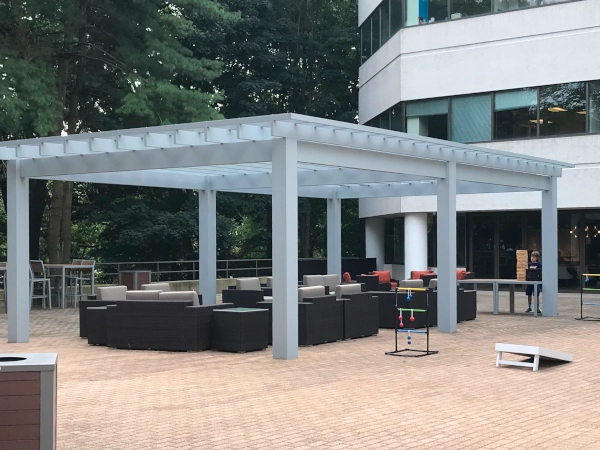

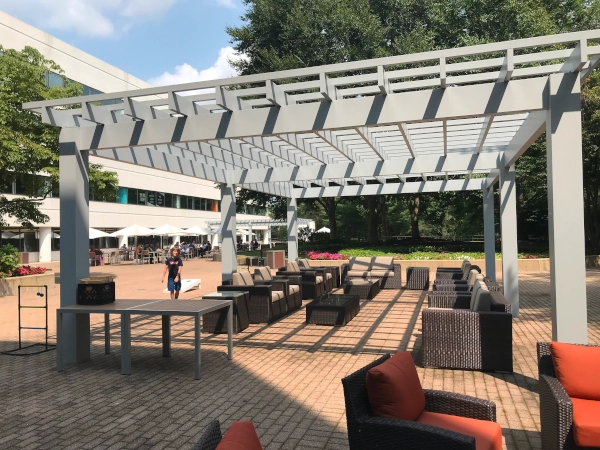

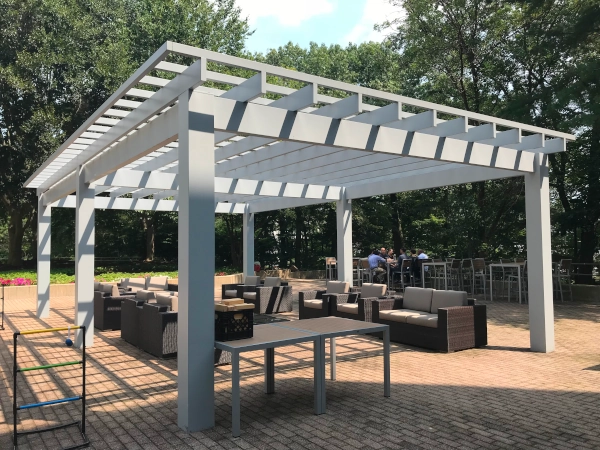

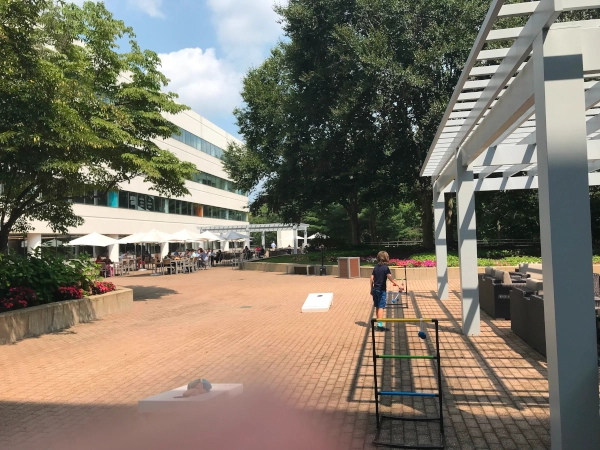

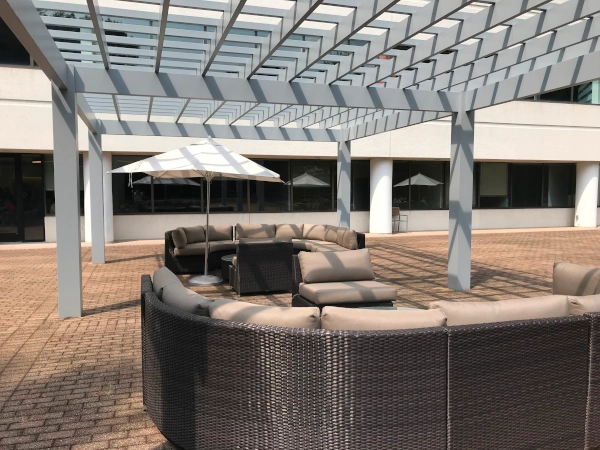

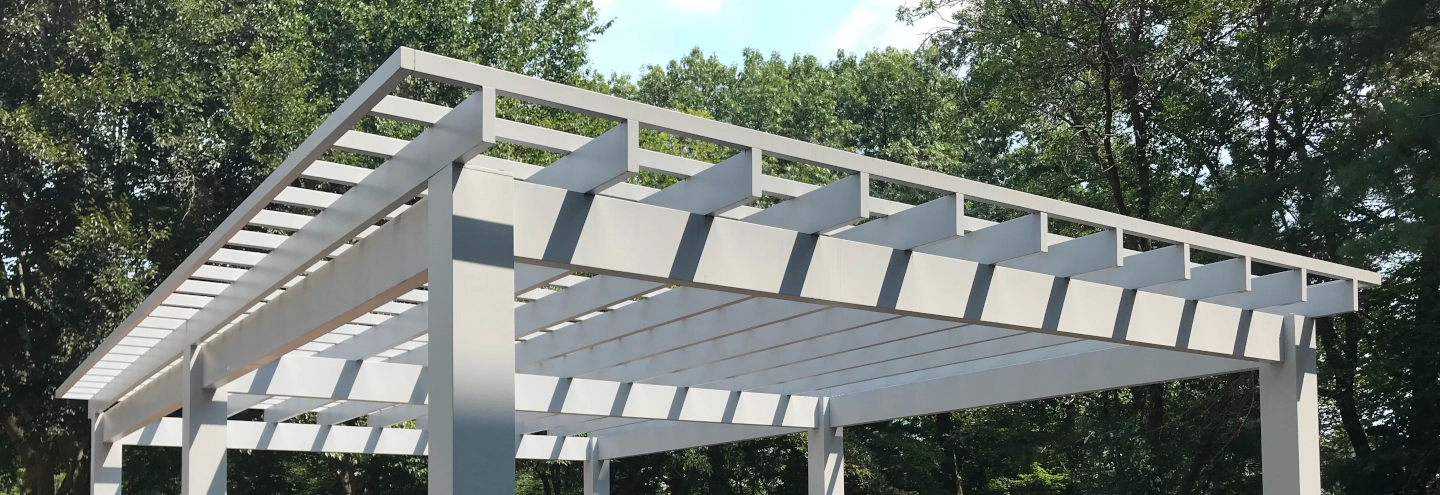

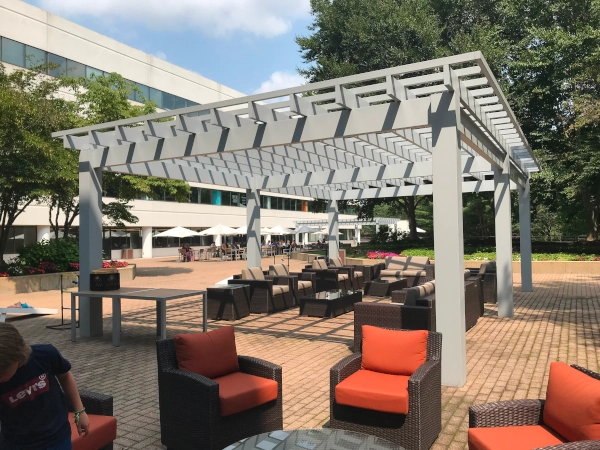

Our First Modern Pergola
We make MODERN pergolas
This is a commercial property here in Connecticut. The management team contacted us for a custom,
modern pergola.
We make MODERN pergolas
We worked with their architect to design a structure unlike anything we had done previously.
We make MODERN pergolas
Our quoted price was so low that they were caught off guard. They called back after twenty minutes
and changed the order from one to two!
We make MODERN pergolas
We kept the photos off the internet for a few years as a way to not attract similar orders. That was
crazy.
We make MODERN pergolas
Now we cherrish building modern pergolas. Every new experience makes us a better company, thus both
sides benefit.
We make MODERN pergolas

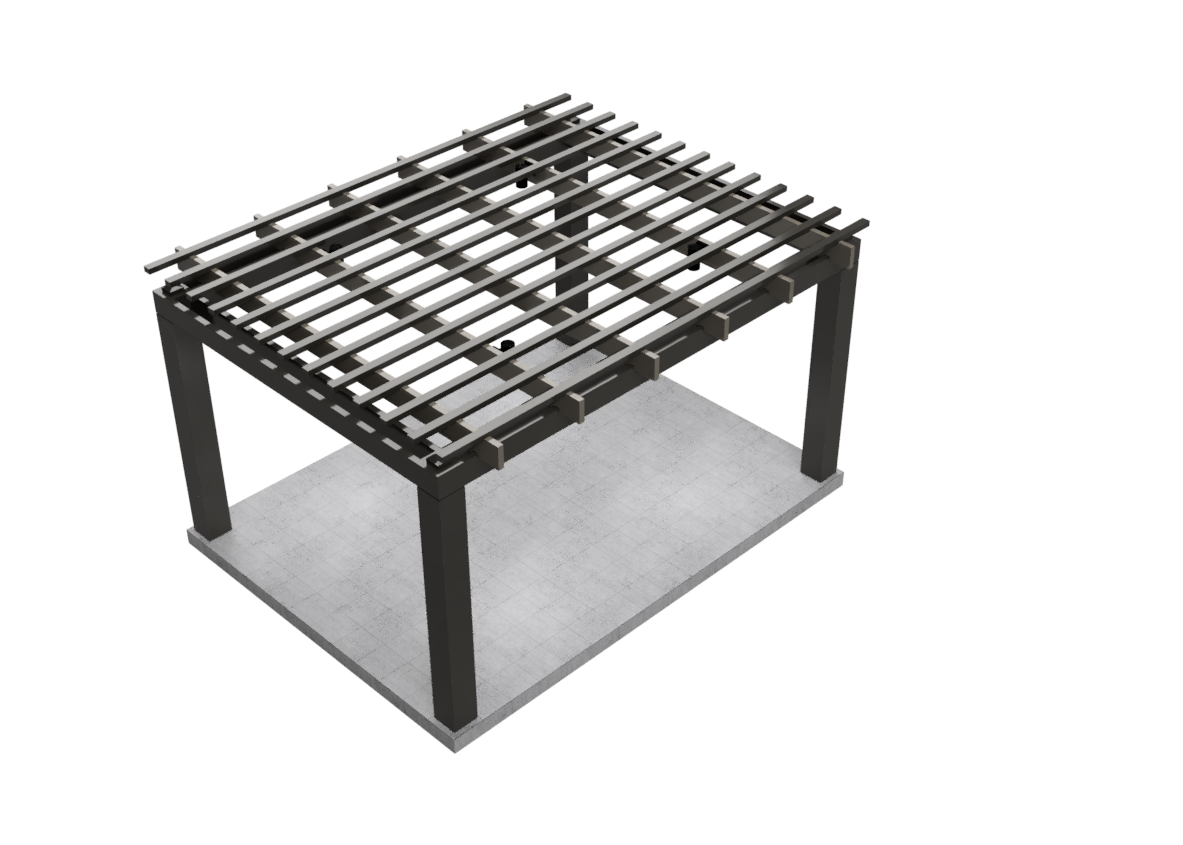

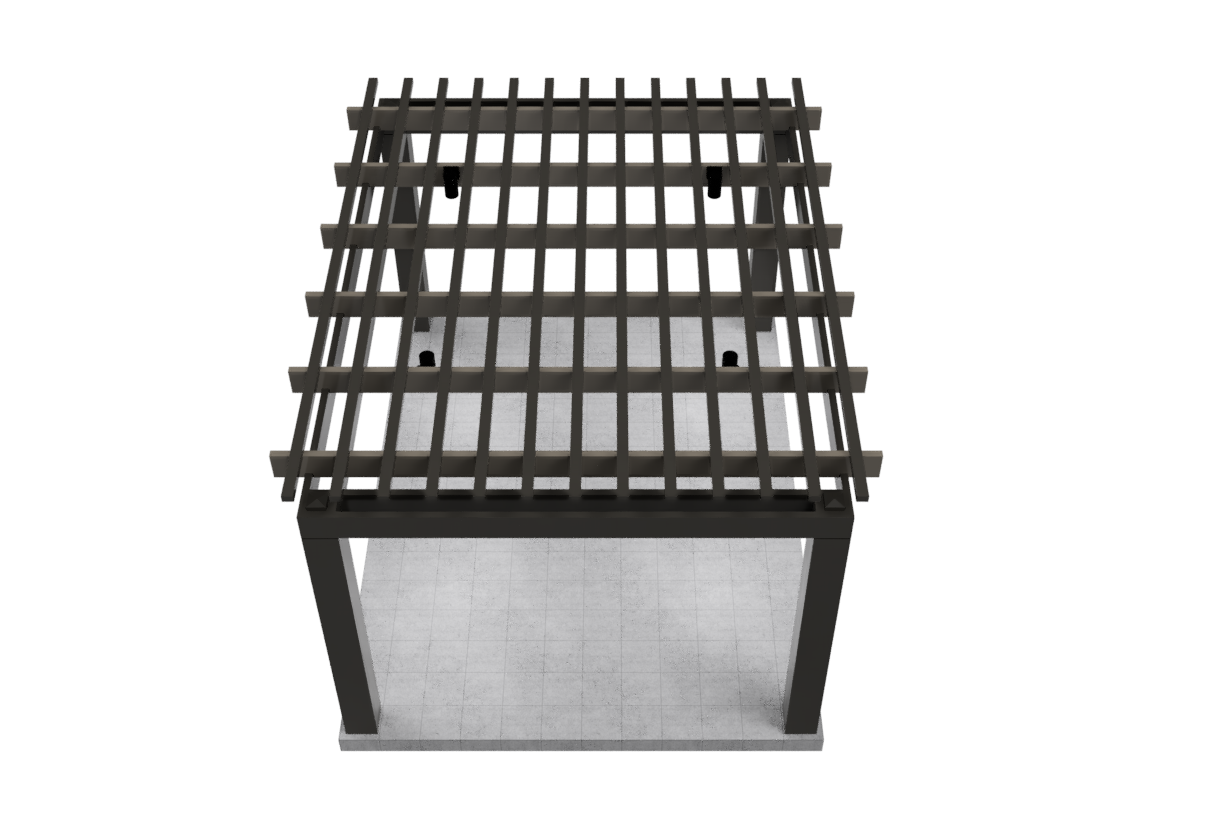

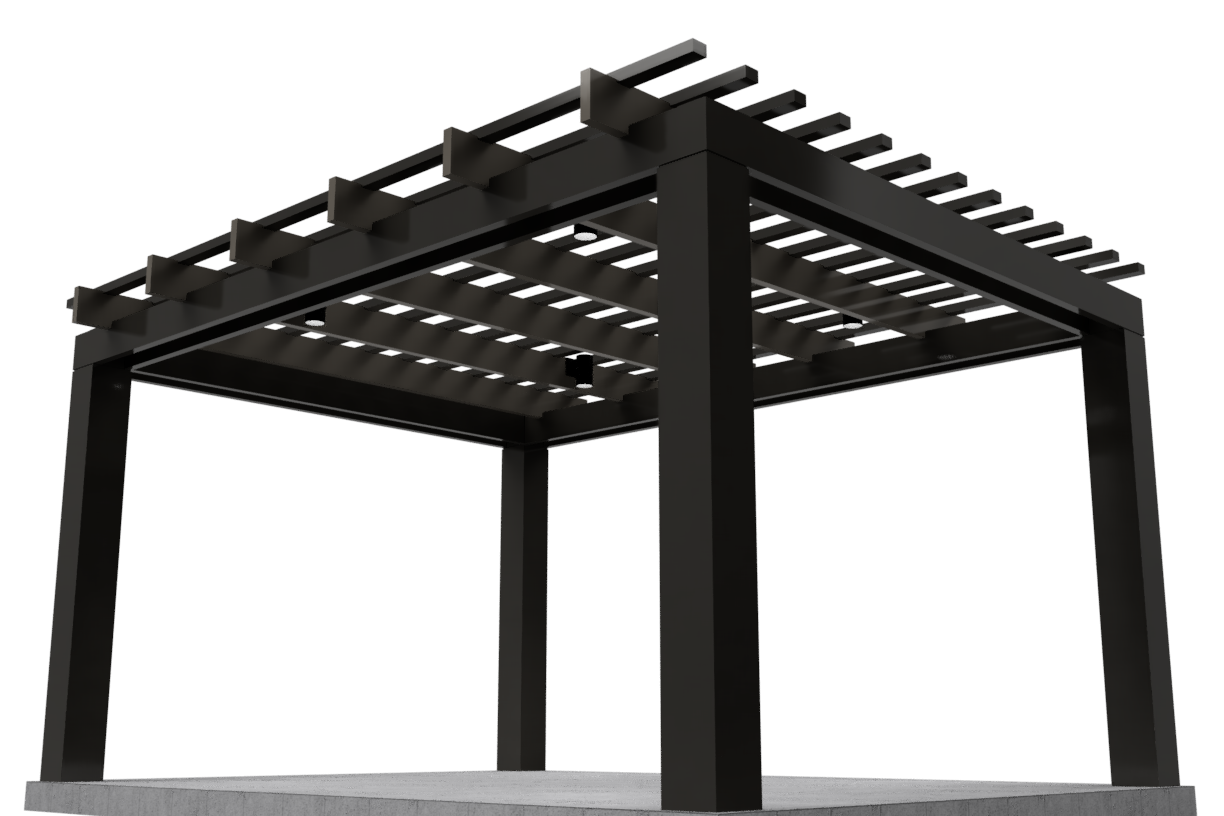

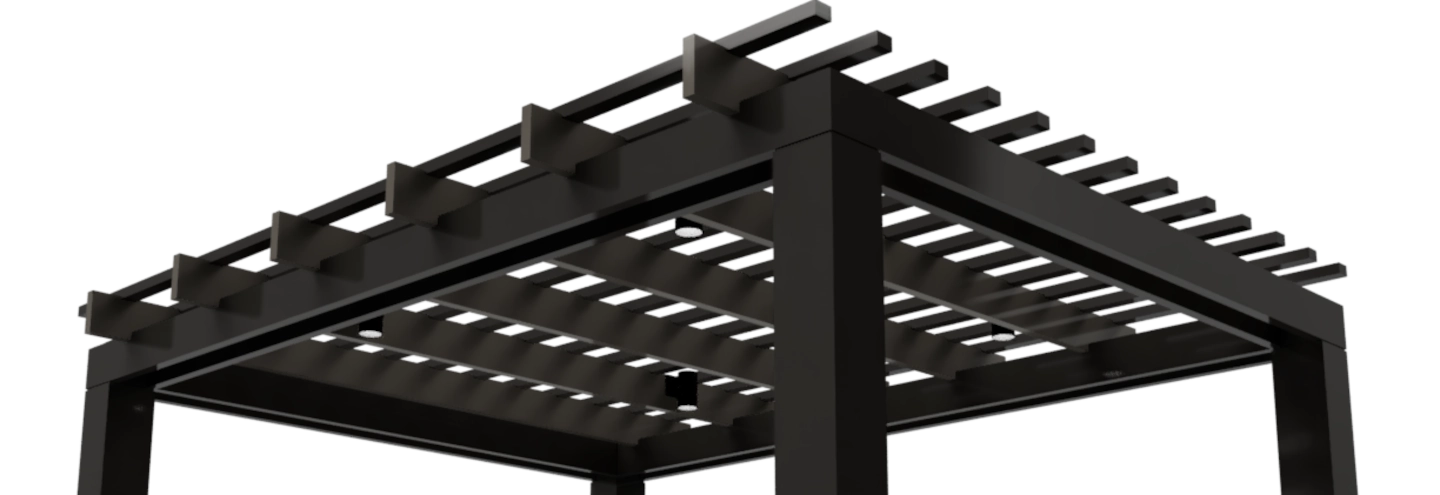

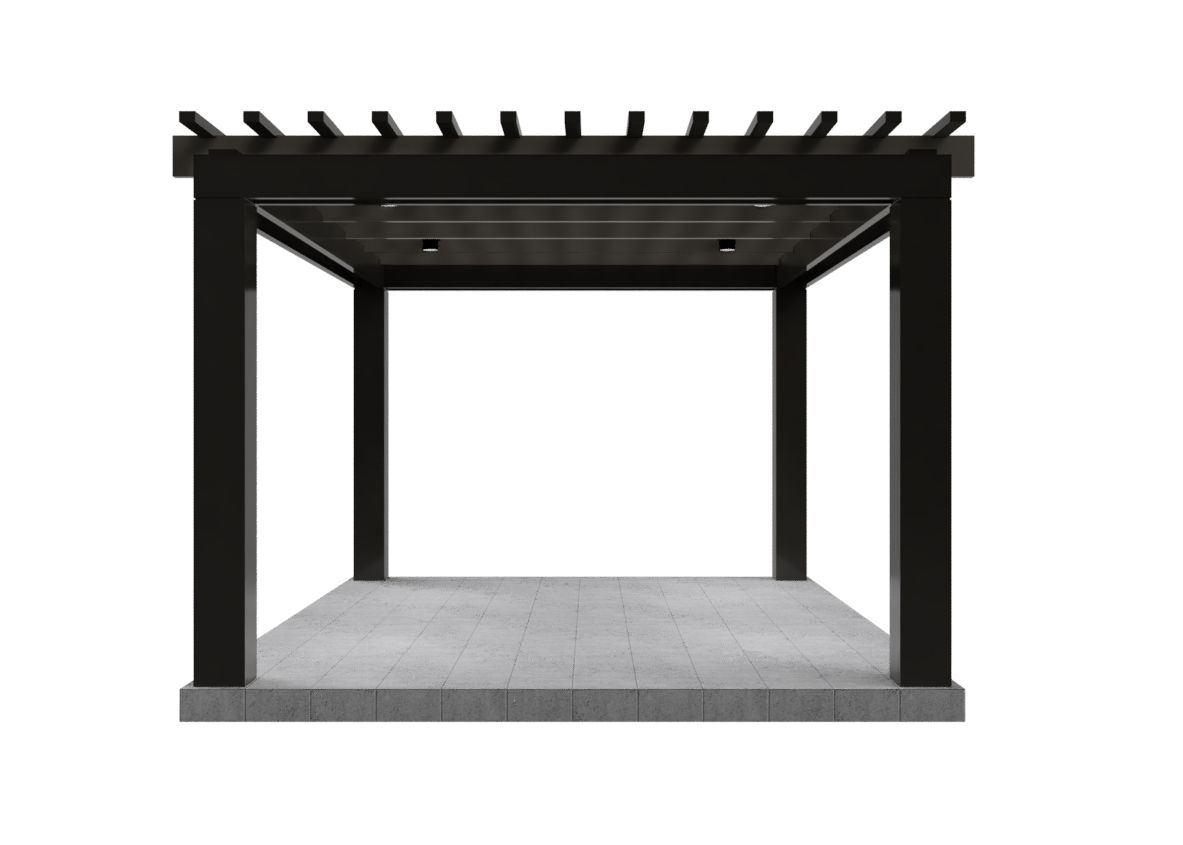

We can follow our in-house Modern Pergola Design or go custom. However you like. The first step is a
drawing or a phone call.

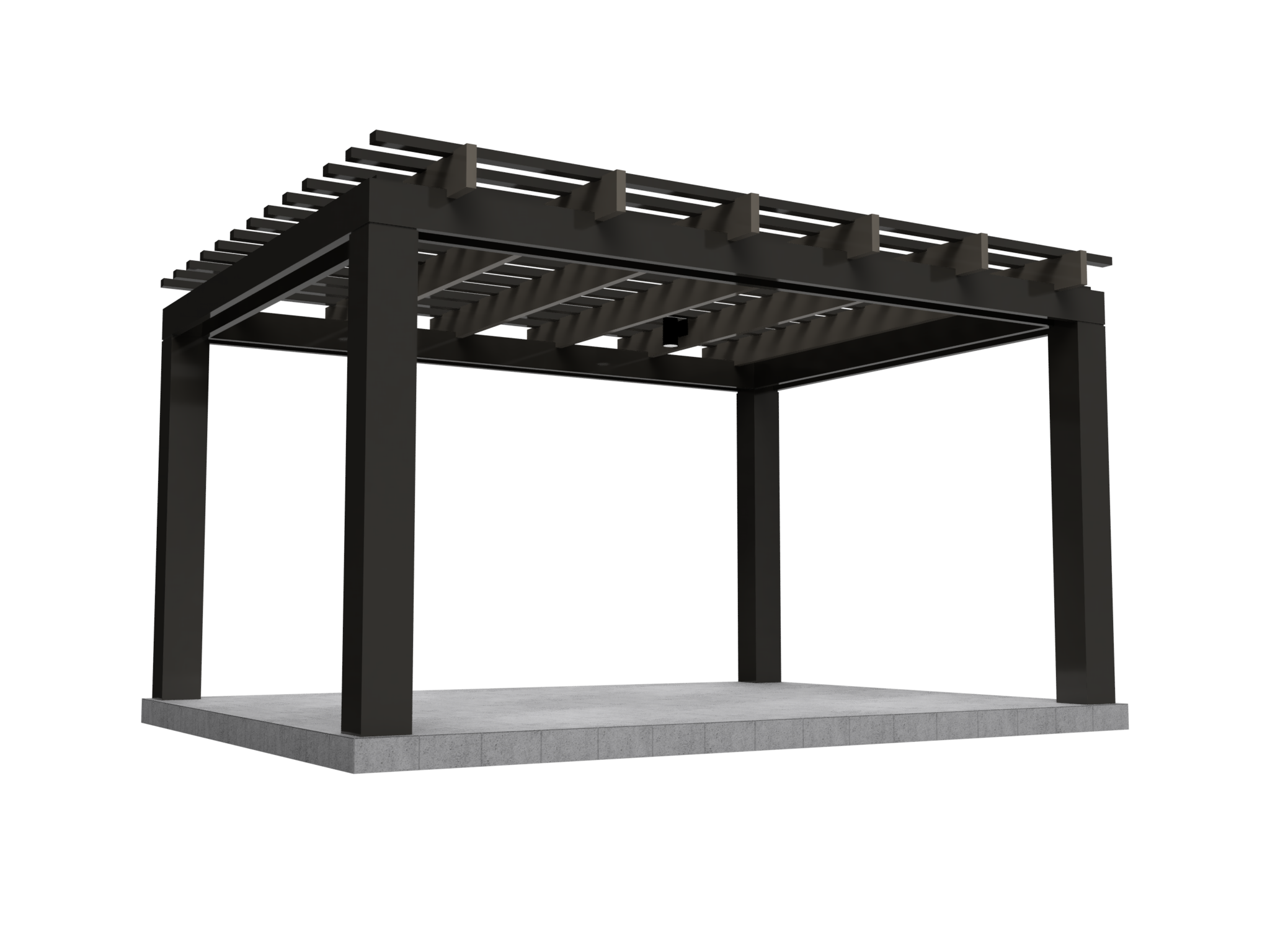

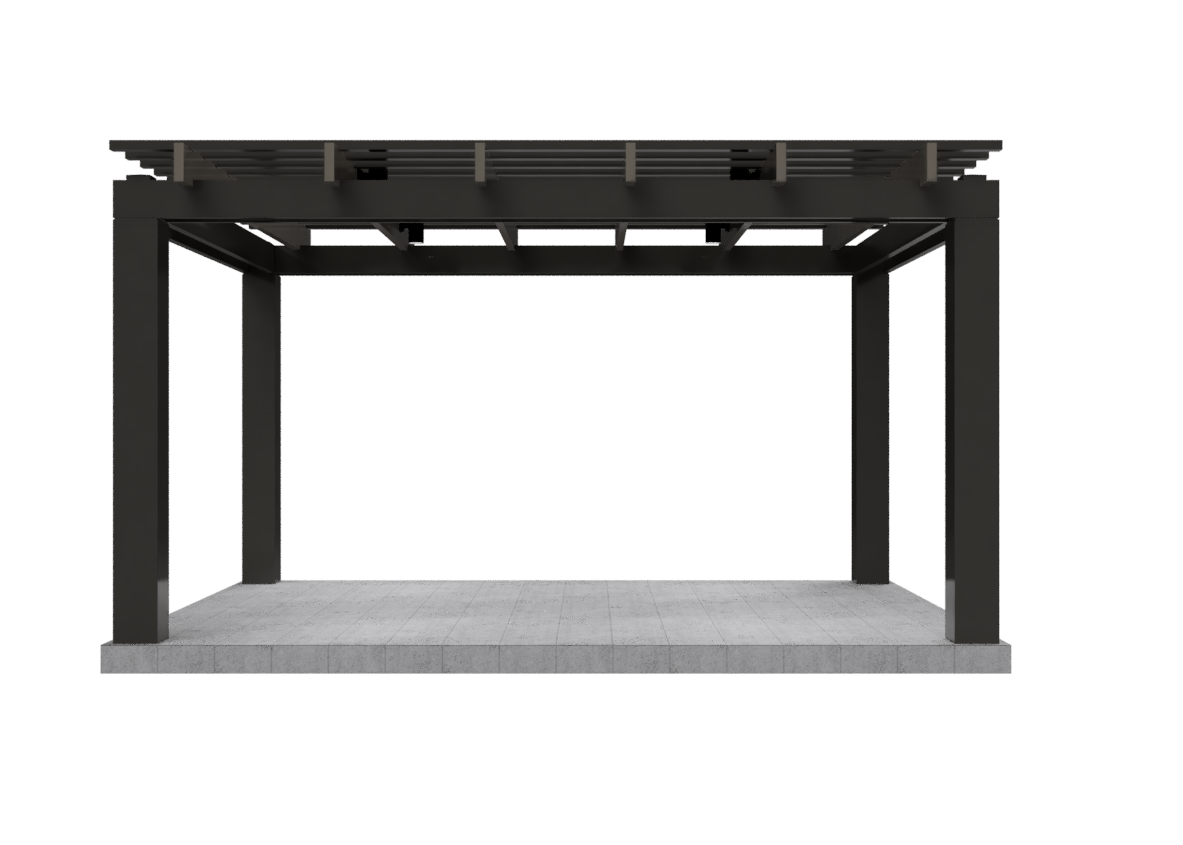

Virtual Modern Pergolas
Every pergola starts in the design phase
Most modern pergolas have been created by architects in a virtual space.
Every pergola starts in the design phase
Pergolas serve various purposes and the shape and features of the pergola should match it's intended
purpose.
Every pergola starts in the design phase
We are specialists. Tell us what you want to accomplish with your structure and we will work
together.
Every pergola starts in the design phase
The best things happen when we collectively stretch the design envelope.
Every pergola starts in the design phase
Every pergola starts in the design phase
This space intentionally left blank for your creativity to flow...
Hospitality Pergola - Marriott Residence Inn

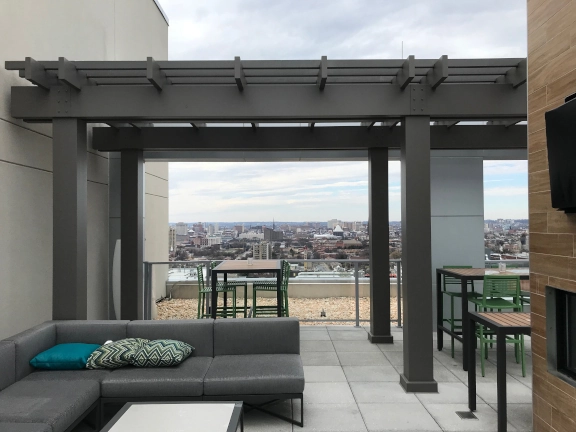

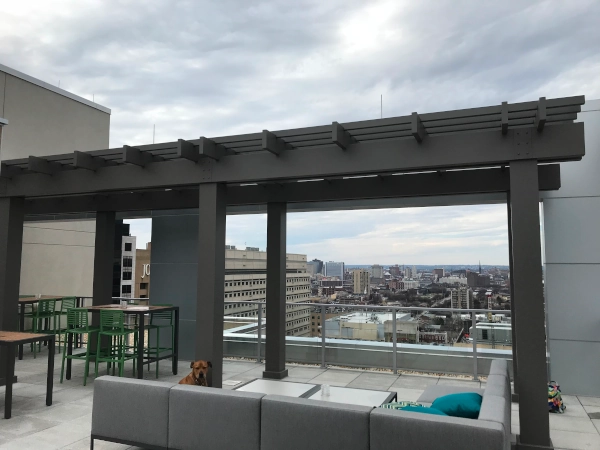

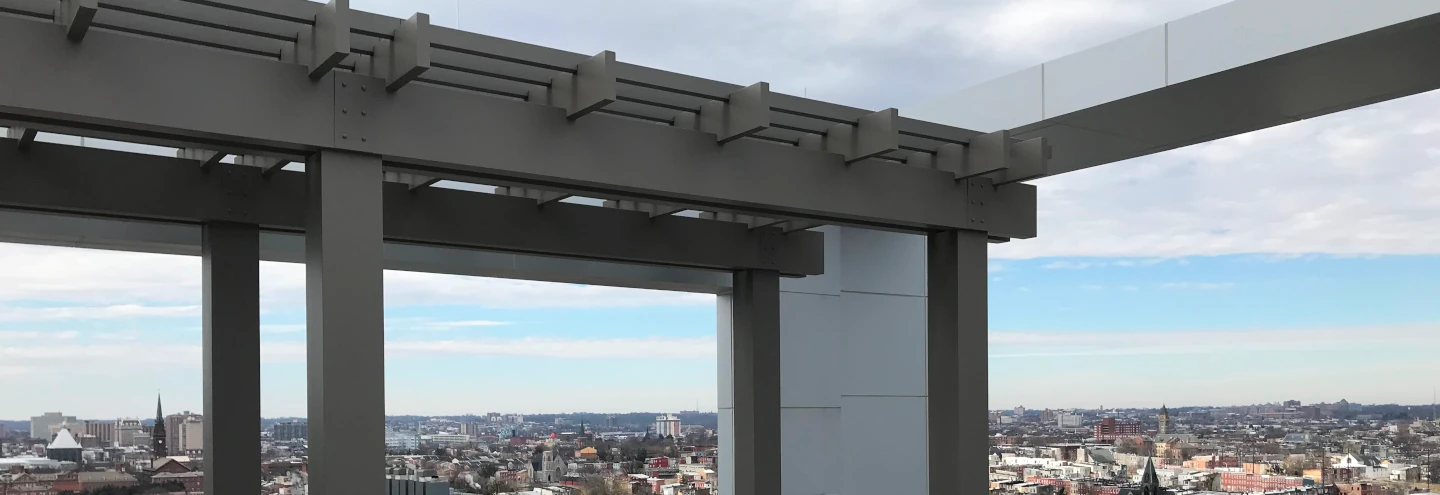

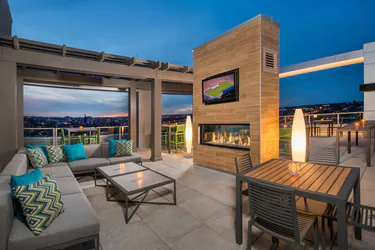

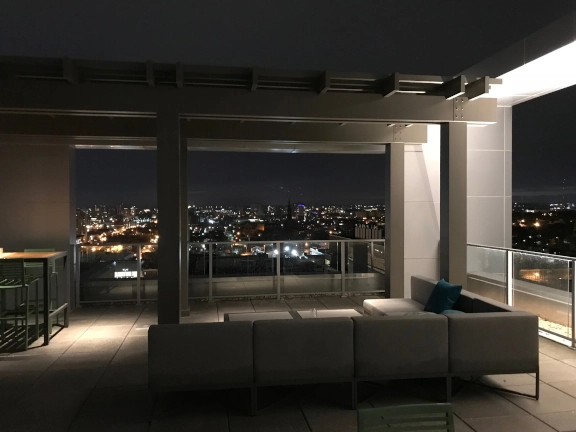

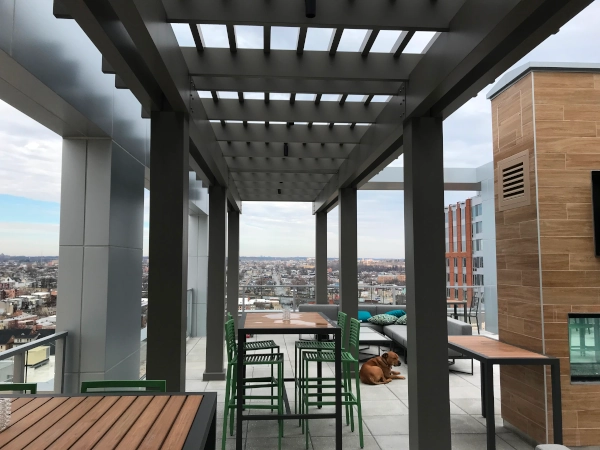

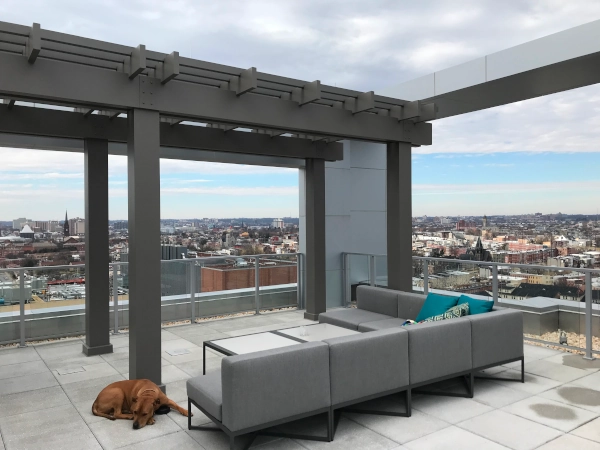

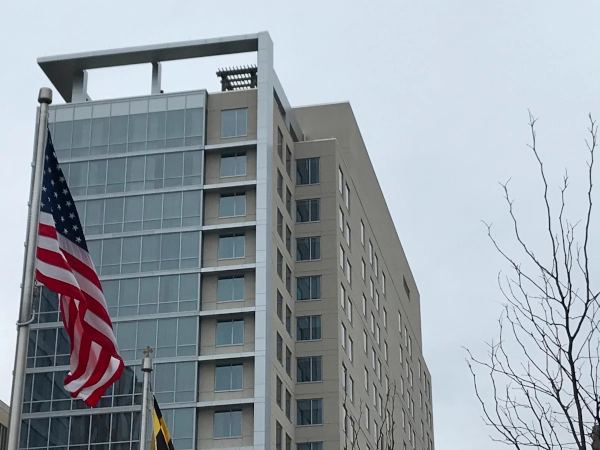

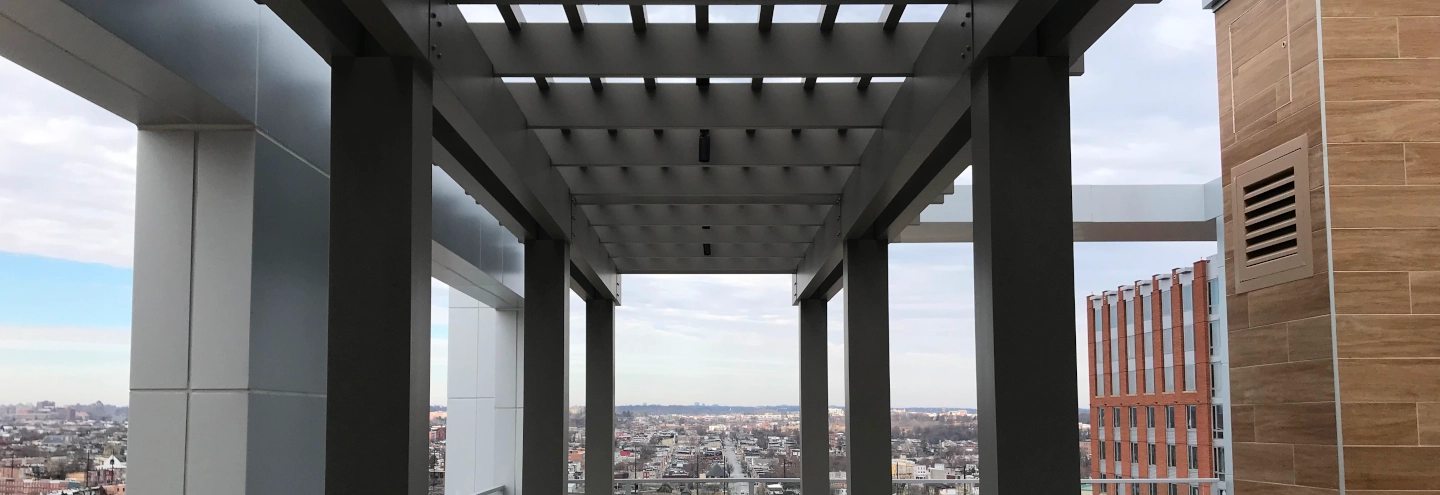

Rooftop Greenspace pergola in Baltimore

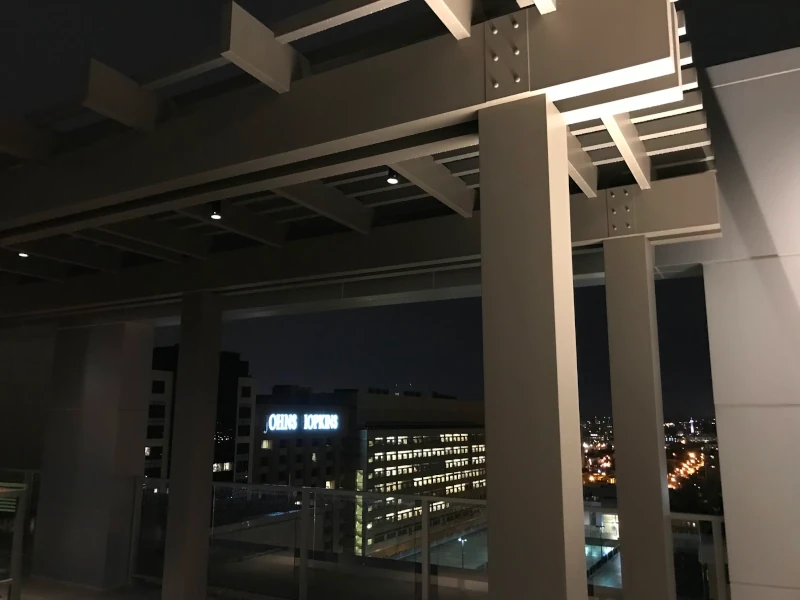

A beautiful view of the city of Baltimore and John Hopkins can be seen from this Modern Greenspace
Rooftop Pergola
Contemporary Creativity
A modern pergola design is not well defined. It's whatever you want it to be.
Rooftop Greenspace pergola in Baltimore
Contemporary Creativity
A modern pergola design is not well defined. It's whatever you want it to be.
Rooftop Greenspace pergola in Baltimore
Rooftop Greenspace pergola in Baltimore
Rooftop Greenspace pergola in Baltimore
Rooftop Greenspace pergola in Baltimore
The rigidity of the pergola is derived from the stability of the connection to the Earth. The importance of big, solid footings which are placed accurately, cannot be overstated.
The rigidity of the pergola is derived from the stability of the connection to the Earth.
Concrete footings: 14" Diameter minimum for 10" square and 12" round columns.
Our site plan will show a diagonal dimension. This helps you square the footings to each other.
Concrete pad: Should be poured 12" deep in the area where the columns will stand.
Stone wall: It's best to drill 18" deep into the well built, mortared stone wall.
Concrete pier: Wet set our 5/8" stainless steel rods into the footing then build the pier
Tolerance factor: Footings should be placed accurately with an overall error margin of less than an inch.
Conduit in footings: Bring a sweep into your footing with the center about three inches off center.
Deck mounted: Ask us for PDF drawings of best practice connection methods.
It is the customers responsibility to make sure that an adequate mounting surface is in place. The customer is responsible for
supplying relevant dimensions such as the depth and width of column centers and overall height requirements for the structure.
All dimensions, including overhangs and member spacing are completely customizable during the design process. At the time of installation, nothing can be changed.
Standing a column up onto a concrete footing. We previously drilled the footing and epoxied a 5/8" stainless steel threaded rod into the footing.
Gather Your Measurements
Measurements are taken from column centers, our typical overhang is 24 inches
A freestanding pergola that measures 120" x 120" on center will have an overall size of 168" x 168"
An attached pergola that measures 120" x 120" on center will have an overall size of 144" deep x 168" wide
All dimensions, including overhangs and member spacing are completely customizable
Use our Pricing Tool
Our pricing tool let's you design your pergola in real time and get an actual price
You will see a plan view CAD drawing of your pergola
You can consider our electrical options, a shade system and/or our installation service
